PDpsi

PDpsi computes psi function (derivative of rho function) for minimum density power divergence estimator

Syntax

Description

example

psi =PDpsi(u, alpha) Plot of psi function.

Examples

expand all

  • Plot of psi function.
  • close all
    x=-6:0.01:6;
    alpha=1;
    psiPD=PDpsi(x,alpha);
    plot(x,psiPD,'LineWidth',2)
    xlabel('$u$','Interpreter','Latex')
    ylabel(['$\psi(u,' num2str(alpha) ')$'],'Interpreter','Latex','FontSize',14)
    hold('on')

    Related Examples

    expand all

  • Comparison of psi function for two values of alpha.
  • close all
    hold('on')
    x=-6:0.01:6;
    alpha1=1;
    psiPD1=PDpsi(x,alpha1);
    plot(x,psiPD1,'LineWidth',2)
    bdp1=1-1/sqrt(1+alpha1);
    eff1=(sqrt(1+2*alpha1)/(1+alpha1))^3;
    alpha2=0.1;
    psiPD2=PDpsi(x,alpha2);
    plot(x,psiPD2,'LineWidth',2)
    bdp2=1-1/sqrt(1+alpha2);
    eff2=(sqrt(1+2*alpha2)/(1+alpha2))^3;
    xlabel('$u$','Interpreter','Latex')
    ylabel('$\psi(u,\alpha)$','Interpreter','Latex','FontSize',14)
    legend({['$\alpha=' num2str(alpha1) '\mapsto bdp=' num2str(bdp1,2) '\;  eff=' num2str(eff1,2) '$'], ...
    ['$\alpha=' num2str(alpha2) '\mapsto bdp=' num2str(bdp2,2) '\;  eff=' num2str(eff2,2) '$']},...
    'Interpreter','Latex','Location','SouthEast','FontSize',12)

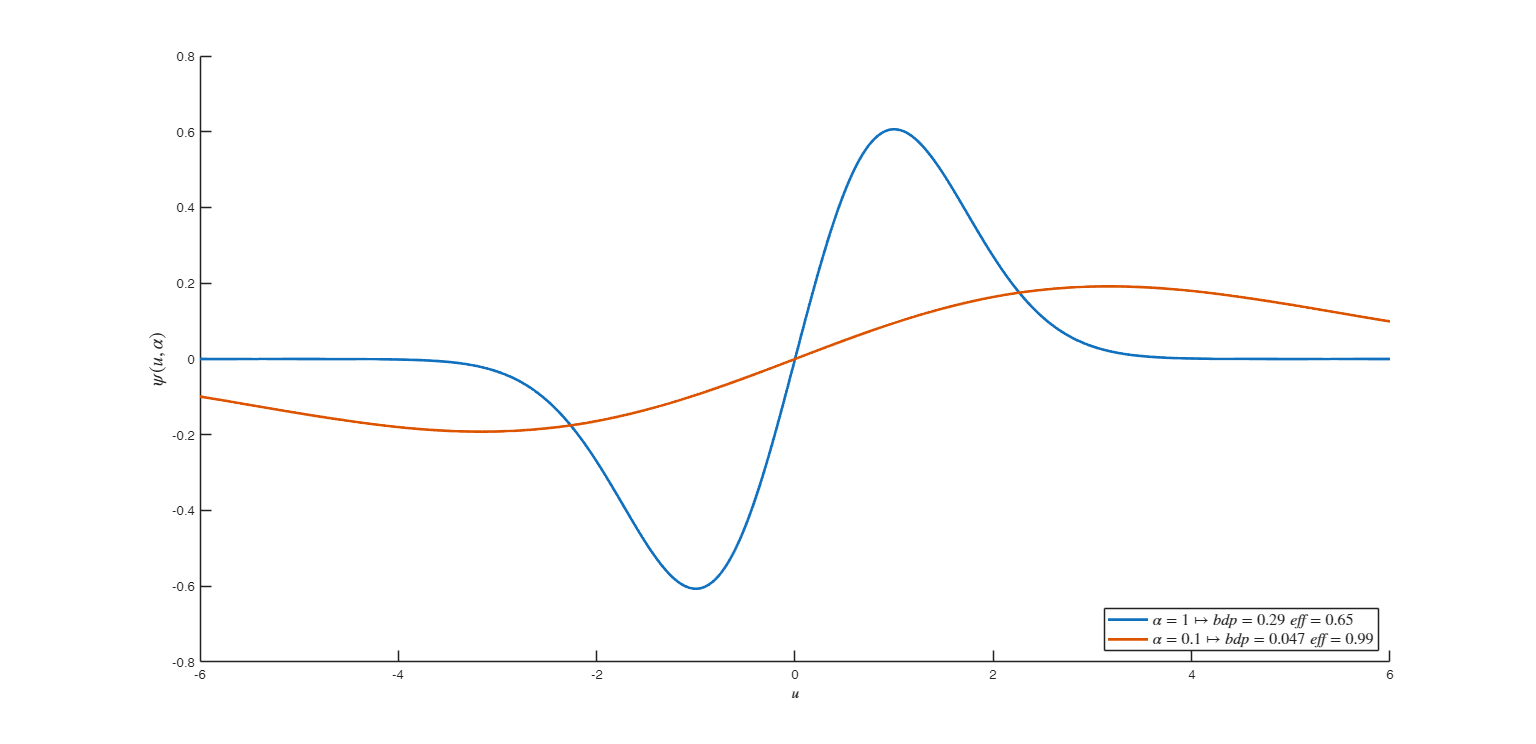

    Click here for the graphical output of this example (link to Ro.S.A. website)

    Input Arguments

    expand all

    u — scaled residuals or Mahalanobis distances. Vector.

    n x 1 vector containing residuals or Mahalanobis distances for the n units of the sample

    Data Types: single| double

    alpha — tuning parameter. Scalar.

    Scalar in the interval (0,1] which controls the robustness/efficiency of the estimator (beta in regression or mu in the location case ...). The greater is alpha the greater is the bdp and smaller is the efficiency.

    Data Types: single| double

    More About

    expand all

    Additional Details

    function PDpsi transforms vector u as follows \[ PDpsi(u,alpha)= \alpha u \exp(-\alpha (u^2/2)); \]

    References

    Riani, M. Atkinson, A.C., Corbellini A. and Perrotta A. (2020), Robust Regression with Density Power Divergence: Theory, Comparisons and Data Analysis, submitted.
