mmdplot

mmdplot plots the trajectory of minimum Mahalanobis distance (mmd)

Syntax

  • brushedUnits=mmdplot(out)example
  • brushedUnits=mmdplot(out,Name,Value)example
  • [brushedUnits, BrushedUnits]=mmdplot(___)example

Description

example

brushedUnits =mmdplot(out) Example of mmdplot.

example

brushedUnits =mmdplot(out, Name, Value) Example of the use of function mmd with personalized envelopes.

example

[brushedUnits, BrushedUnits] =mmdplot(___) Interactive_example mmdplot with option dataooltip.

Examples

expand all

  • Example of mmdplot.
  • Steps common to all the examples

    Y=load('head.txt');
    [fre]=unibiv(Y);
    %create an initial subset with the 4 observations, which fell the smallest
    %number of times outside the robust bivariate ellipses, and with the
    %lowest Mahalanobis Distance.
    fre=sortrows(fre,[3 4]);
    m0=20;
    bs=fre(1:m0,1);
    [out]=FSMeda(Y,bs);
    mmdplot(out)
    ans =

         []

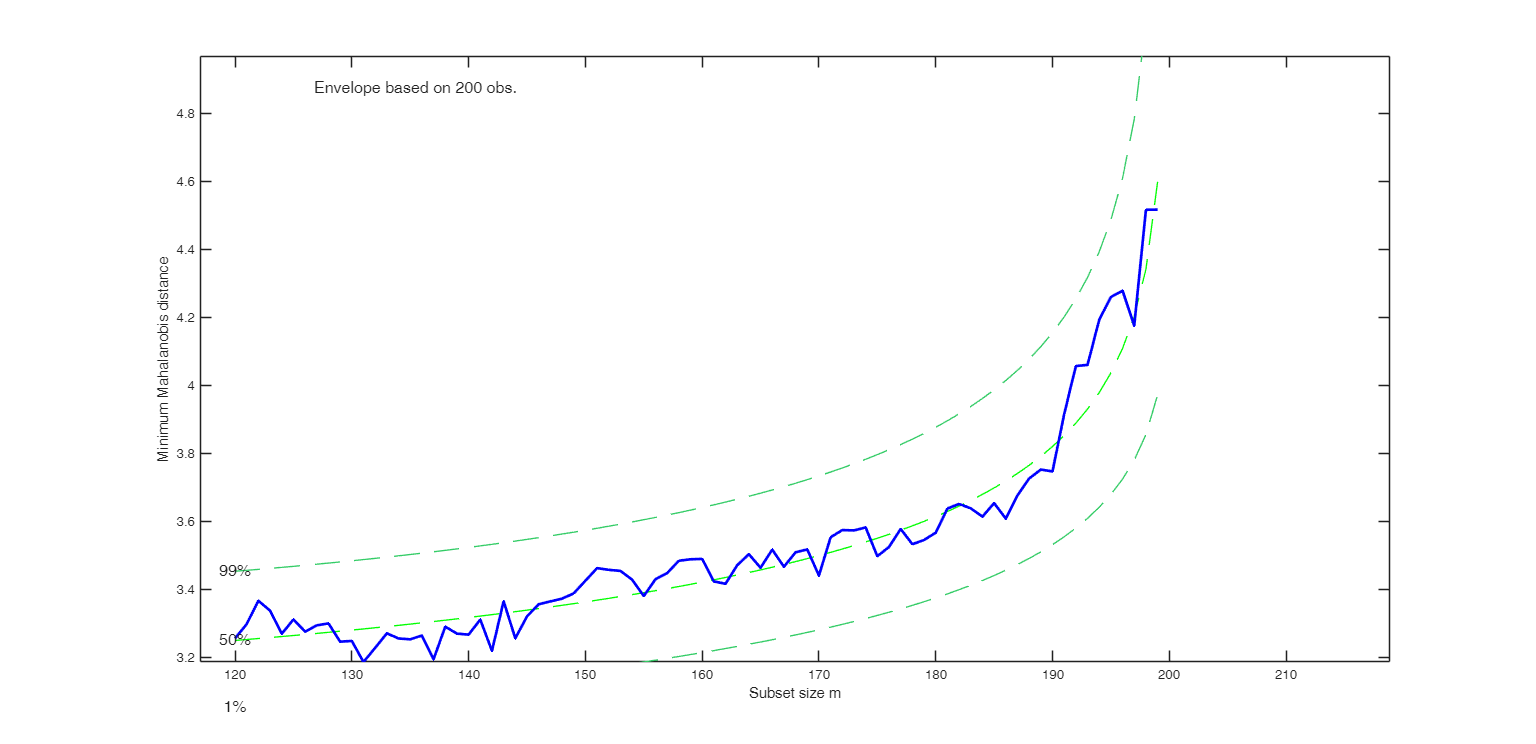

    Click here for the graphical output of this example (link to Ro.S.A. website). Graphical output could not be included in the installation file because toolboxes cannot be greater than 20MB. To load locally the image files, download zip file http://rosa.unipr.it/fsda/images.zip and unzip it to <tt>(docroot)/FSDA/images</tt> or simply run routine <tt>downloadGraphicalOutput.m</tt>

  • Example of the use of function mmd with personalized envelopes.
  • Y=load('head.txt');
    [fre]=unibiv(Y);
    fre=sortrows(fre,[3 4]);
    m0=20;
    bs=fre(1:m0,1);
    [out]=FSMeda(Y,bs);
    mmdplot(out,'quant',[0.99;0.9999]);

  • Interactive example 1. mmdplot with option dataooltip.
  • %Example of the use of function mmdplot with datatooltip passed as
    %scalar (that is using default options for datacursor (i.e.
    %DisplayStyle =window)
    Y=load('head.txt');
    [fre]=unibiv(Y);
    fre=sortrows(fre,[3 4]);
    m0=20;
    bs=fre(1:m0,1);
    [out]=FSMeda(Y,bs);
    mmdplot(out,'datatooltip',1);

    Related Examples

    expand all

  • Interactive example 2. mmdplot with option dataooltip passed as structure.
  • %Example of the use of function mmdplot with datatooltip passed as
    %structure
    Y=load('head.txt');
    [fre]=unibiv(Y);
    fre=sortrows(fre,[3 4]);
    m0=20;
    bs=fre(1:m0,1);
    [out]=FSMeda(Y,bs);
    clear tooltip
    tooltip.SnapToDataVertex='on'
    tooltip.DisplayStyle='datatip'
    mmdplot(out,'datatooltip',tooltip);

  • Example of the use of option envm.
  • In this case the resuperimposed envelope is based on n-2 observations

    Y=load('head.txt');
    [fre]=unibiv(Y);
    fre=sortrows(fre,[3 4]);
    m0=20;
    bs=fre(1:m0,1);
    [out]=FSMeda(Y,bs);
    mmdplot(out,'envm',size(Y,1)-2);

  • Interactive example 3. Example of the use of function mdrplot with databrush.
  • Y=load('head.txt');
    [fre]=unibiv(Y);
    fre=sortrows(fre,[3 4]);
    m0=20;
    bs=fre(1:m0,1);
    [out]=FSMeda(Y,bs);
    mmdplot(out,'databrush',1);

  • Interactive example 4. Example of databrush passed as structure.
  • % Example where databrush is a structure
    Y=load('head.txt');
    [fre]=unibiv(Y);
    fre=sortrows(fre,[3 4]);
    m0=20;
    bs=fre(1:m0,1);
    [out]=FSMeda(Y,bs);
    databrush=struct
    databrush.selectionmode='Lasso'
    mmdplot(out,'databrush',databrush)

  • Interactive example 5. Example of the use of brush using brush mode.
  • Y=load('head.txt');
    [fre]=unibiv(Y);
    fre=sortrows(fre,[3 4]);
    m0=20;
    bs=fre(1:m0,1);
    [out]=FSMeda(Y,bs);
    databrush=struct
    databrush.selectionmode='Brush'
    databrush.Label='on';
    mmdplot(out,'databrush',databrush)

  • Interactive example 6. Example of the use of persistent non cumulative brush.
  • Every time a brushing action is performed previous highlights are removed.

    Y=load('head.txt');
    [fre]=unibiv(Y);
    fre=sortrows(fre,[3 4]);
    m0=20;
    bs=fre(1:m0,1);
    [out]=FSMeda(Y,bs);
    databrush=struct
    databrush.persist='off'
    databrush.Label='on';
    databrush.RemoveLabels='off';
    mmdplot(out,'databrush',databrush)

  • Interactive example 7. Example of the use of persistent cumulative brush.
  • Every time a brushing action is performed current highlights are added to previous highlights

    Y=load('head.txt');
    [fre]=unibiv(Y);
    fre=sortrows(fre,[3 4]);
    m0=20;
    bs=fre(1:m0,1);
    [out]=FSMeda(Y,bs);
    databrush=struct
    databrush.persist='on';
    databrush.selectionmode='Rect'
    % outV is the vector of all selected units during brushing
    % outM is a matrix, each column contains the groups of selected units
    % at each brushing action
    [outV, outM]=mmdplot(out,'databrush',databrush)

    Input Arguments

    expand all

    out — Structure containing monitoring of mmd. Structure.

    Structure containing the following fields.

    Value Description
    mmd

    a matrix containing the monitoring of minimum Mahalanobis distance in each step of the forward search. The first column of mdr must contain the fwd search index This matrix can be created using function FSMeda (compulsory argument).

    If this matrix has three columns in the third colum there is the monitoring of the (m+1)-th Mahalanobis distance

    Un

    matrix containing the order of entry of each unit (necessary if datatooltip is true or databrush is not empty)

    Y

    the original n x v data matrix (necessary only if option databrush is not empty)

    Data Types: single|double

    Name-Value Pair Arguments

    Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside single quotes (' '). You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

    Example: 'quant',[0.01 0.99] , 'mplus1',1 , 'envm',n , 'xlimx',[20 100] , 'ylimy',[2 6] , 'lwdenv',2 , 'tag','mymmd' , 'datatooltip',1 , 'label',{'Smith','Johnson','Robert','Stallone'} , 'databrush',1 , 'FontSize',14 , 'SizeAxesNum',14 , 'nameY',{'Age','Income','Married','Profession'} , 'lwd',3 , 'namey','Plot title' , 'labx','Subset size m' , 'laby','mmd' , 'scaled',0

    quant —quantiles for which envelopes have to be computed.vector.

    1 x k vector containing quantiles for which envelopes have to be computed. The default is to produce 1%, 50% and 99% envelopes.

    Example: 'quant',[0.01 0.99]

    Data Types: double

    mplus1 —add (m+1) order statistic curve.scalar.

    If mplus1=1 it is also possible to plot the curve associated with (m+1)th order statistic.

    The default is mplus1=0

    Example: 'mplus1',1

    Data Types: double

    envm —sample size to use.scalar.

    Scalar which specifies the size of the sample which is used to superimpose the envelope. The default is to add an envelope based on all the observations (size n envelope).

    Example: 'envm',n

    Data Types: double

    xlimx —min and max for x axis.vector.

    vector with two elements controlling minimum and maximum on the x axis.

    Default value is mmd(1,1)-3 and mmd(end,1)*1.3

    Example: 'xlimx',[20 100]

    Data Types: double

    ylimy —min and max for x axis.vector.

    Vector with two elements controlling minimum and maximum on the y axis.

    Default value is min(mmd(:,2)) and max(mmd(:,2));

    Example: 'ylimy',[2 6]

    Data Types: double

    lwdenv —Line width.scalar.

    Scalar which controls the width of the lines associated with the envelopes.

    Default is lwdenv=1

    Example: 'lwdenv',2

    Data Types: double

    tag —plot handle.string.

    String which identifies the handle of the plot which is about to be created. The default is to use tag 'pl_mmd'. Notice that if the program finds a plot which has a tag equal to the one specified by the user, then the output of the new plot overwrites the existing one in the same window else a new window is created.

    Example: 'tag','mymmd'

    Data Types: char

    datatooltip —interactive clicking.empty value (default) | structure.

    If datatooltip is not empty the user can use the mouse in order to have information about the unit seected, the step in which the unit enters the search and the associated label. If datatooltip is a structure, it is possible to control the aspect of the data cursor (see function datacursormode for more details or the examples below). The default options of the structure are DisplayStyle='Window' and SnapToDataVertex='on'.

    Example: 'datatooltip',1

    Data Types: empty value, numeric or structure

    label —rwo labels.cell.

    Cell containing the labels of the units (optional argument used when datatooltip=1. If this field is not present labels row1, ..., rown will be automatically created and included in the pop up datatooltip window).

    Example: 'label',{'Smith','Johnson','Robert','Stallone'}

    Data Types: cell

    databrush —interactive mouse brushing.empty value (default), scalar | structure.

    DATABRUSH IS AN EMPTY VALUE .

    If databrush is an empty value (default), no brushing is done. The activation of this option (databrush is a scalar or a structure) enables the user to select a set of trajectories in the current plot and to see them highlighted in the spm (notice that if the spm does not exist it is automatically created).

    In addition, brushed units can be highlighted in the monitoring MD plot Note that the window style of the other figures is set equal to that which contains the monitoring residual plot. In other words, if the monitoring residual plot is docked all the other figures will be docked too.

    DATABRUSH IS A SCALAR.

    If databrush is a scalar the default selection tool is a rectangular brush and it is possible to brush only once (that is persist='').

    DATABRUSH IS A STRUCTURE.

    If databrush is a structure, it is possible to use all optional arguments of function selectdataFS and the following optional argument:

    persist. Persist is an empty value or a scalar containing the strings 'on' or 'off' If persist = 'on' or 'off' brusing can be done as many time as the user requires. If persist='on' then the unit(s) currently brushed are added to those previously brushed. If persist='off' every time a new brush is performed units previously brushed are removed. The default value of persist is '' that is brushing is allowed only once. If persist is 'on' it is possible, every time a new brushing is done, to use a different color for the brushed units labeladd. If this option is '1', we label the units of the last selected group with the unit row index in matrices X and y. The default value is labeladd='', i.e. no label is added.

    Remark: if databrush is a struct, it is possible to specify all optional arguments of function selectdataFS inside the curly brackets of option databrush.

    Example: 'databrush',1

    Data Types: single | double | struct

    FontSize —Size of axes labels.scalar.

    Scalar which controls the fontsize of the labels of the axes.

    Default value is 12.

    Example: 'FontSize',14

    Data Types: single | double

    SizeAxesNum —Size of axes numbers.scalar which controls the fontsize of the numbers of the axes.

    Default value is 10.

    Example: 'SizeAxesNum',14

    Data Types: single | double

    nameY —Regressors names.cell array of strings.

    Cell array of strings of length v containing the labels of the varibales of the original data matrix. If it is empty (default) the sequence Y1, ..., Yp will be created automatically.

    Example: 'nameY',{'Age','Income','Married','Profession'}

    Data Types: cell

    lwd —Curves line width.scalar.

    Scalar which controls linewidth of the curve which contains the monitoring of minimum Mahalanobis distance.

    Default line width=2

    Example: 'lwd',3

    Data Types: single | double

    titl —main title.character.

    A label for the title (default: '')

    Example: 'namey','Plot title'

    Data Types: char

    labx —x axis title.character.

    A label for the x-axis (default: 'Subset size m').

    Example: 'labx','Subset size m'

    Data Types: char

    laby —y axis title.character.

    A label for the y-axis (default: 'Minimum Mahalnobis distance').

    Example: 'laby','mmd'

    Data Types: char

    scaled —scaled or unscaled envelopes.boolean.

    (Use reference envelopes scaled or unscaled).

    If scaled=1 the envelopes are produced for scaled Mahalanobis distances (no consistency factor is applied) else the traditional consistency factor is applied Default is to use unscaled envelopes.

    Example: 'scaled',0

    Data Types: char

    Output Arguments

    expand all

    brushedUnits —List of the units which are inside subset in the trajectories which have been brushed using option databrush. brushed units. Vector. Vector

    If option databrush has not been used brushedUnits will be an empty value.

    BrushedUnits —brushed units. Matrix

    Matrix of size r-by-numBrushingActions which contains in column j the brushed units after jth brushing.

    If during jth brushing action the number of brushed units is $s<r$ the last $r-s$ units of column j are set to 0.

    References

    Atkinson, A.C., Riani, M. and Cerioli, A. (2004), "Exploring multivariate data with the forward search", Springer Verlag, New York.

    See Also

    This page has been automatically generated by our routine publishFS
