FSCorAnaenvmmd

FSCorAnaenvmmd computes the empirical envelopes of Minimum MD outside subset during the search

Syntax

  • MMDenv=FSCorAnaenvmmd(N)example
  • MMDenv=FSCorAnaenvmmd(N,Name,Value)example

Description

example

MMDenv =FSCorAnaenvmmd(N) Call of FSCorAnaenvmmd with all the default options.

example

MMDenv =FSCorAnaenvmmd(N, Name, Value) Call of FSCorAnaenvmmd with options prob and nsimul.

Examples

expand all

  • Call of FSCorAnaenvmmd with all the default options.
  • Generate contingency table of size 30-by-5 with total sum of n_ij=3000.

    I=50;
    J=5;
    n=10000;
    % nrowt = column vector containing row marginal totals
    nrowt=(n/I)*ones(I,1);
    % ncolt = row vector containing column marginal totals
    ncolt=(n/J)*ones(1,J);
    out1=rcontFS(I,J,nrowt,ncolt);
    N=out1.m144;
    MMDenv=FSCorAnaenvmmd(N);
    plot(MMDenv(:,1),MMDenv(:,2:4),'k')
    xlabel('Subset size m');

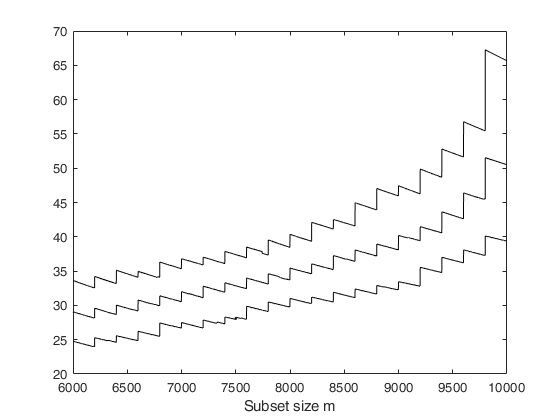

    Click here for the graphical output of this example (link to Ro.S.A. website). Graphical output could not be included in the installation file because toolboxes cannot be greater than 20MB. To load locally the image files, download zip file http://rosa.unipr.it/fsda/images.zip and unzip it to <tt>(docroot)/FSDA/images</tt> or simply run routine <tt>downloadGraphicalOutput.m</tt>

  • Call of FSCorAnaenvmmd with options prob and nsimul.
  • Compute 0.001 0.01 0.99 and 0.999 envelopes Generate contingency table of size 50-by-5 with total sum of n_ij=2000.

    I=50;
    J=5;
    n=2000;
    % nrowt = column vector containing row marginal totals
    nrowt=(n/I)*ones(I,1);
    % ncolt = row vector containing column marginal totals
    ncolt=(n/J)*ones(1,J);
    out1=rcontFS(I,J,nrowt,ncolt);
    N=out1.m144;
    MMDenv=FSCorAnaenvmmd(N,'prob',[0.001 0.01 0.99 0.999],'nsimul',1000);
    hold('on')
    plot(MMDenv(:,1),MMDenv(:,3:4),'r-')
    plot(MMDenv(:,1),MMDenv(:,[2 5]),'k-')
    xlabel('Subset size m')

    Input Arguments

    expand all

    N — contingency table or structure. Array or table of size I-by-J or strucure.

    If N is a structure it must contain the field N.N = contingency table in array format of size I-by-J.

    Data Types: single | double

    Name-Value Pair Arguments

    Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside single quotes (' '). You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

    Example: 'init',50 , 'prob',[0.05 0.95] , 'nsimul',100

    init —Point where to start monitoring required diagnostics.scalar.

    Note that if bsb is supplied, init>=length(bsb). If init is not specified it will be set equal to floor(n*0.6).

    Example: 'init',50

    Data Types: double

    prob —quantiles for which envelopes have to be computed.vector.

    Vector containing 1 x k elements .

    The default is to produce 1 per cent, 50 per cent and 99 per cent envelopes.

    Example: 'prob',[0.05 0.95]

    Data Types: double

    nsimul —numer of simulations.scalar.

    Number of simulations to perform. The default value is 200.

    Example: 'nsimul',100

    Data Types: double

    Output Arguments

    expand all

    MMDenv —Envelopes for the requested quantiles. n-m0+1 x length(prob)+1 columns

    1st col = fwd search index from m0 to n-1;

    2nd col = envelope for quantile prob[1];

    3rd col = envelope for quantile prob[2];

    ...;

    (k+1) col = envelope for quantile prob[k].

    References

    Riani, M., Atkinson, A.C. and Cerioli, A. (2009), Finding an unknown number of multivariate outliers, "Journal of the Royal Statistical Society Series B", Vol. 71, pp. 201-221.
